    OMRON PLC 70pcs/Min Screen Printing Press Equipment UV Silk Screen Printing Machine

    Ask Lasest Price
    Brand Name : HONGYU
    Model Number : HY-767-3C
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30SET/MOUNTH
    Delivery Time : 15 work day
    • Product Details
    • Company Profile

    OMRON PLC 70pcs/Min Screen Printing Press Equipment UV Silk Screen Printing Machine

    Auto Loading 3 Color Silk Screen Printing Machinery Screen Printer Machine

    3 Color Automatic Water Bottle Screen Printing Machine
    This 3 color UV silkscreen printing machine well designed to print round, oval and square shape plastic bottles, glass bottles, and metal bottles. Such as cosmetic bottle, water bottle, sport bottle, milk bottle, plastic cup, silicone sealant tube, engine oil bottle, lube filter, wine bottle, etc. As the bottle printing machine manufacturer,
    Product Description
    1.For round and flat substrate design, the structure is simple and reasonable adjustment convenient and quick, stable and reliable operation. 2.Integrated synchronous automatic feeding, automatic lifting printing and UV curing and other functions, greatly improve the printing efficiency, printing speed up to3000- 4000/hr. 3.Through the touch screen display operation easy to achieve man-machine dialogue, make the operation more handy. 4.With a round bottle pre positioning function, so that the printing process is more efficient and more accurate 5.Through electronic sensors to achieve "no parts not printing", low pressure alarm and other automatic monitoring functions. 6.The whole machine electrical components and control system are imported from Germany and Japan, to ensure the stability of the printing quality. 7.According to the customer's special requirements for their products, specially designed and tailored equipment.

    OMRON PLC 70pcs/Min Screen Printing Press Equipment UV Silk Screen Printing MachineOMRON PLC 70pcs/Min Screen Printing Press Equipment UV Silk Screen Printing Machine

    Specification
    Model NO.:
    HY-767-2C
    Round container size:
    Diameter: φ10-100mm, Height: 30-260mm
    Round container max. print area:
    L 260 x W220mm
    Oval container size:
    R: 10-250mm, Height: 30-260mm
    Oval container max. print area:
    L 120 x W220mm
    Drive:
    Mechanical Driven
    Control system:
    OMRON PLC & Touch Screen
    Max. printing capacity:
    70 pcs/min
    Registration tolerance:
    +/- 0.2 mm
    Infeed conveyor:
    1 unit, length: 2 meters
    Deionizing device:
    1 unit
    Flame treating system:
    1 unit, LP gas
    Motor:
    ITALY MOTOVARIO
    Print head:
    1 unit
    UV system:
    1 unit intelligent UV system, 5KW per each

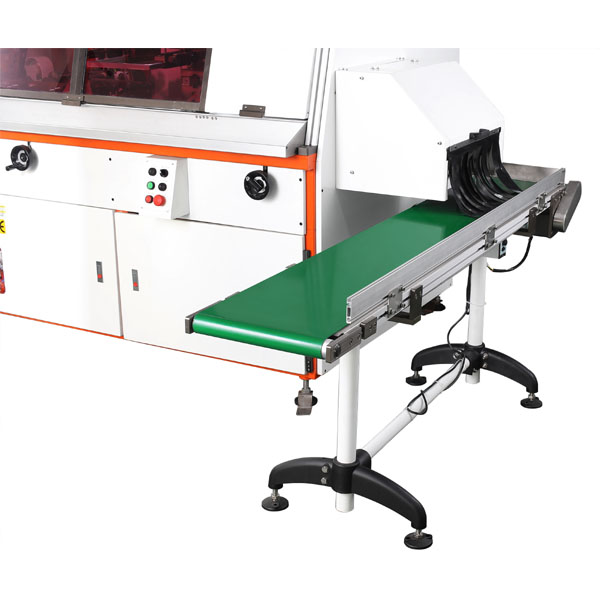

    Outfeed conveyor:
    1 unit, Length: 2 meters
    Frequency Converter:
    OMRON
    Pneumatic parts:
    FESTO or SMC
    Electrical:
    380V 3phase 50Hz
    Air requirement:
    5-7 bar
    Air consumption:
    85 liter/ minute max. (per color)
    Power consumption:
    5.4 KW/color x 1
    Machine size(LxWxH):
    Main machine: 4300x1800x1700mm
    Weight:
    2300 KG
    *Specifications are subject to change without prior notification
