Single Color Automatic UV Screen Printing Machine For Bottles

Description:
This UV silk screen printing machine well designed to print round, oval and square shape plastic bottles, glass bottles, and metal bottles. Such as cosmetic bottle, water bottle, sport bottle, milk bottle, plastic cup, silicone sealant tube, engine oil bottle, lube filter, wine bottle, etc. As the bottle printing machine manufacturer.Exported to Europe, the United States, South Korea, the Middle East, South Africa and Mexico and other countries and regions, deeply trusted by domestic and foreign customers;

Function
1,Infected-conveyor
2,Automatic turning function
3,Flame treatment device
4,Stepless variable speed control system(PLC control)
5,Automatic pre-matching system
6,Stop printing without product(Using high performance photoelectric sensor, transparent bottle and black bottle can be identified reliably)
7,UV Dryer HONOVIA(USA)

Configuration
1.Main motor:SITI(Italy)
2.PLC:OMRON(Japan)
3.Touchscreen:OMRON(Japan)
4.Optoelectronic switch:KEYENCE(Germany)
5.Switch:IDEC (Japan)
6.Contactor: SCHNEIDER(Germany)/FUJIFILM (Japan)
7.Relay:OMRON(Japan)
8.Transducer:OMRON(Japan)
9.UV:HONOVIA(USA)
10.Pneumatic Component:SMC(Japan)

Technical parameters
1.Diameter (Round things):ф15mm~ф100mm(Based on actual product)
2.Height(Round things):20mm~270mm
3.Diameter(Oval things):R20mm~R180mm
4.Height(Oval things):20mm~270mm
5.Max speed:For round surface, 40-65P/M,For Oval surface, 40-60P/M
6.Power need:AC220V 1Phase/AC380V 3Phase 50Hz /60Hz
7.Power:Main 7.5KW + 6KW
8.Air Pressure:5～8bar
9.Size(MM): L5400*W2000*H1900(Based on actual product)
10.Weight:4500kg

Machine Details

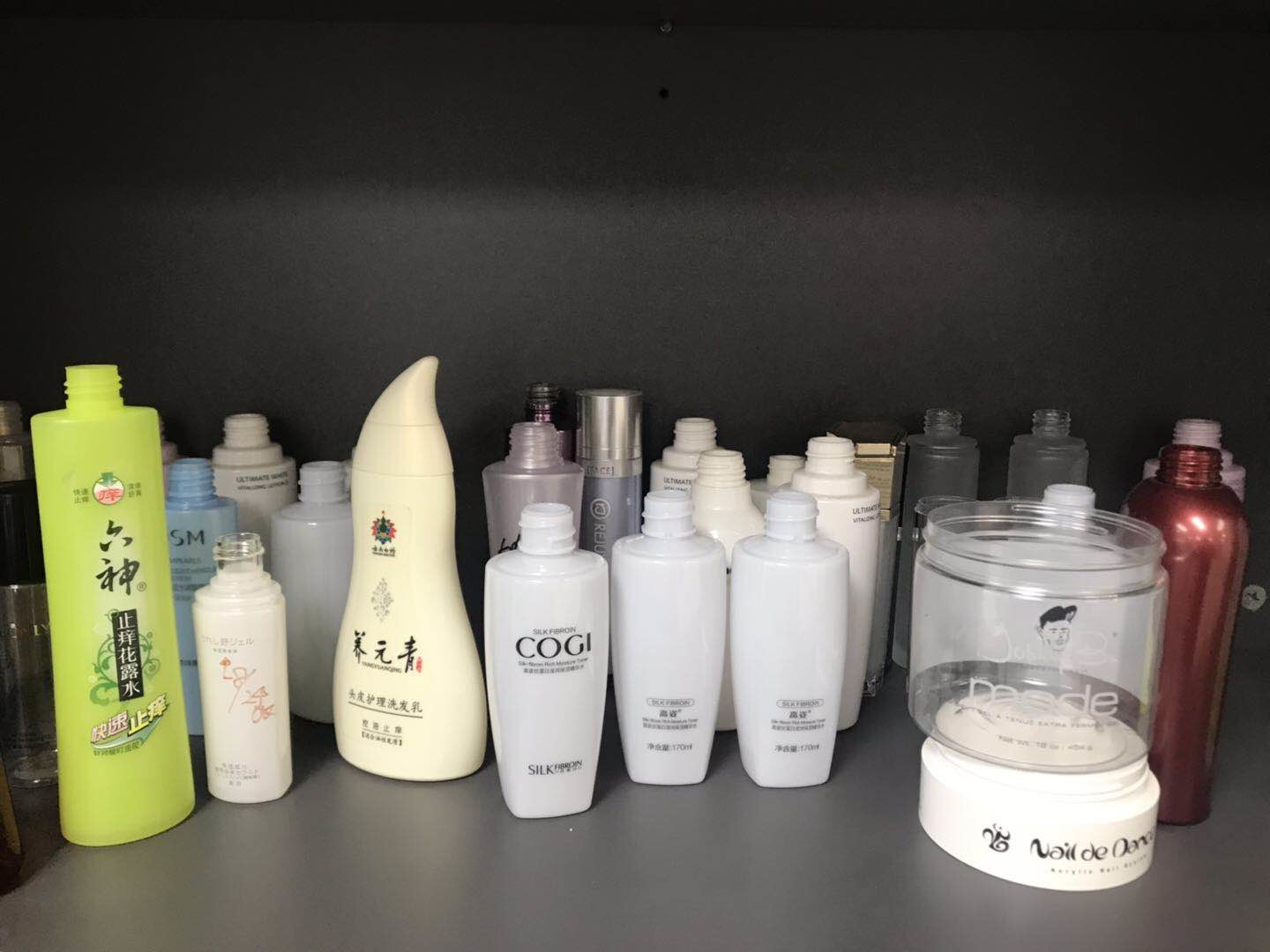

Print Samples

Factory Show

Dongguan Hongyu Automation Technology Co. Ltd locates in Chang' an Town, Dongguan City, where is the"world factory"and famous town of machinery，Building up by professional engineers of this industry.always works on designing, producing and selling screen printer, pad printer, hot stamping machine, heat transfer machine and relative equipment. We' re good at making kinds of fully automatic screen printing machine, pad printing machine，hot stamping machine, heat transfer machine and providing professional printing solutions.
