Resistance Loop Bands printing machine screen printer for yoga belts

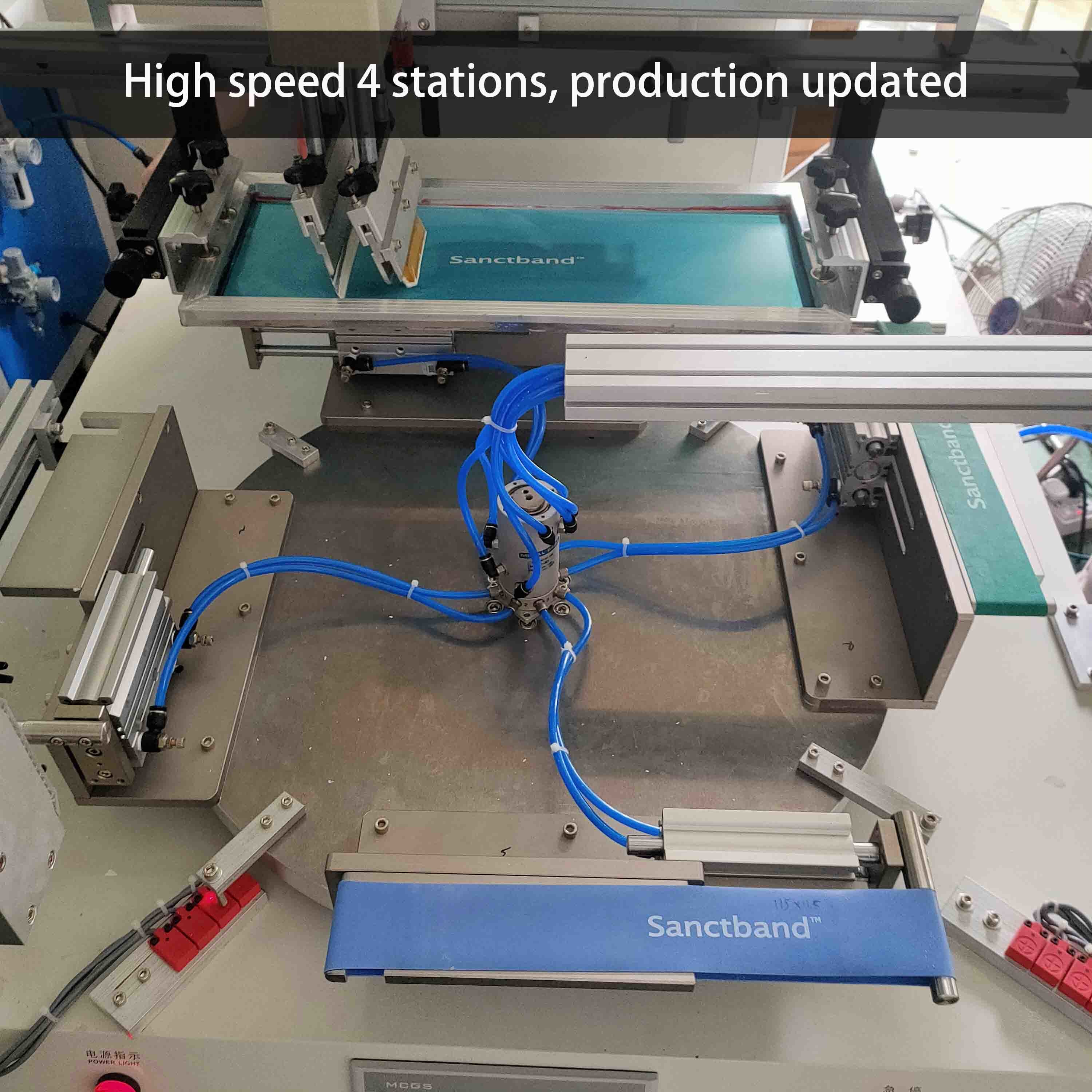

Four station rotary screen printing machine is a universal flat screen printing machine. It can be widely used in daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry and food packaging and other industries.

Characteristics:
1. High speed turntable and high precision screen printing machine is composed of Taiwan mechanical cam splitter and high-strength rotating platform. Due to the strong stability of the divider, there is no vibration during high-speed rotation, and the indexing is accurate. It can carry out multi-color overprint without displacement during printing. The multi station design can take and place workpieces at will while printing, reduce the time of stopping the equipment loading, and the fastest speed can reach 1500 times / h. It is the first choice for mass screen printing, especially suitable for lens, button, PVC film and card products. The worktable can be fine tuned in the aspects of left and right, front and rear, and angle, and the positioning is accurate and stable.
2. Automatic start function makes it more convenient to remove and clean the mesh frame
3. Blade left and right movement adopts Taiwan (Shangyin) linear guide structure, which is light and stable, and improves printing quality.
4. Taiwan (Swift) PLC frequency converter controls the operation of the whole machine. The operation data is more accurate and obvious
5. Automatic screen function, higher printing quality. Screen position adjustment.
6. Blade left and right stepping Taiwan Wanxin motor and synchronous belt drive, more stable operation.
7. The turntable is controlled by cam splitter. The precision of the table is as high as 0.1 mm
8. Stable performance, the whole machine is controlled by the world's advanced microcomputer controller.
9. According to the needs of customers, preset two function programs, single cycle printing and full automatic printing.
10. It adopts the latest pneumatic components from Taiwan Adec and Japan SMC company, with smooth and strong power and durable.
11. The operation panel adopts the sensitive touch system of Taiwan's vellon touch screen, which can directly select the screen printing function, with quick response and convenient use.
Performance introduction
Technical parameters:
1. Printing color: 1 color (multi color matching)
2. Printing speed: 1500 times / h
3. The maximum mesh frame is 400mmx600mm
4. The maximum table area is 200mmX300mm
5. The maximum printing area is 180mmx250mm
6. Maximum height of work piece: 80mm
7. The lifting stroke of mesh frame is 200 mm
8. The left and right stroke of scraper is 420mm
9. The diameter of turntable is Φ 600mm
10. The up and down stroke of scraper and oil scraper is 25mm
11. Control system:PLC
12. Power supply voltage: 220 VAC 50 / 60 Hz
13. Connected load: 2.2kw
14. Pneumatic supply 4-6bar
15. Weight: about 520kg
