    50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer

    Ask Lasest Price
    Brand Name : HY
    Model Number : P4C
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer

    P4C Transfer belt pad printer machine 4 color semi auto equipment

    50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer

    Application:

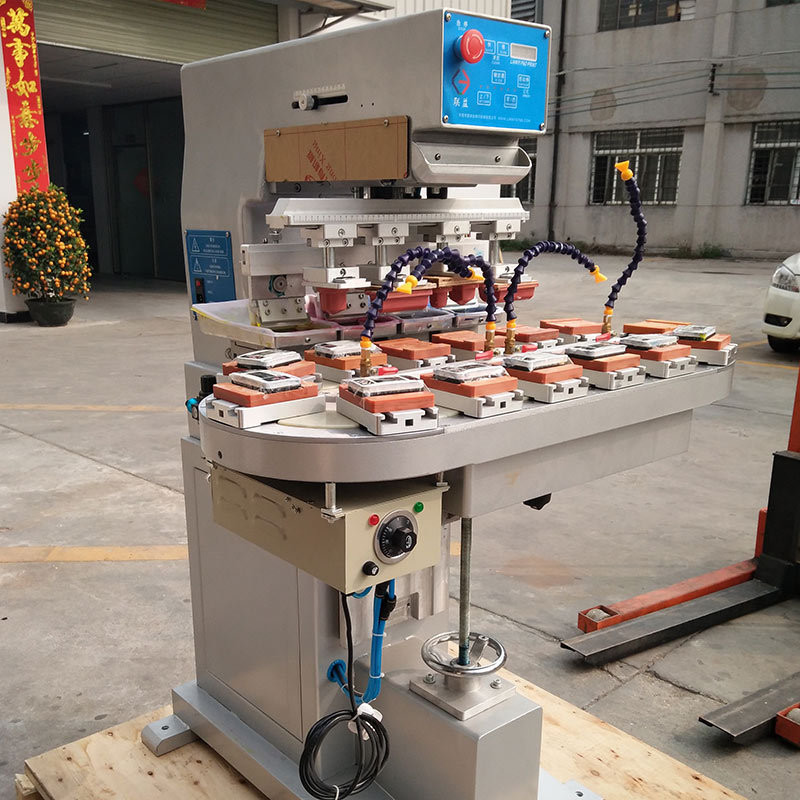

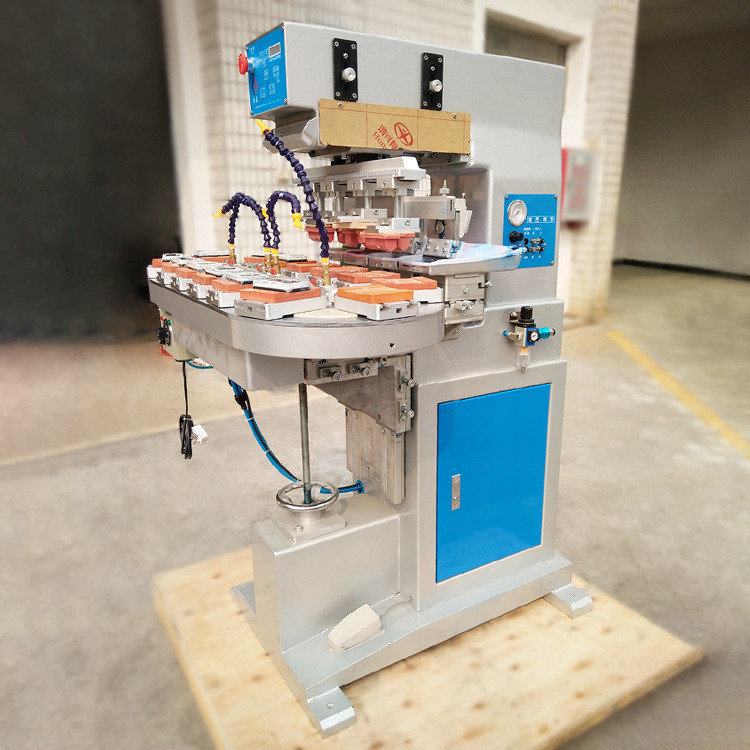

    It is a big rotary printing machine, conveying products by rotary type turntable. The products can be overprinted with 4 colors. Running a circle can finish one time overprint. Comparing with shuttle pad printer, it come to a high steps. It can print bigger products with 4 color with fast and steady. It's suitable for printing logo on the surface of electronic products, plastic shell, hardware, stationery etc.

    Specification:

    Power:110/220V, 50-60HZ, 50WMax. outside size of products:L200* W90-100mm.
    Air pressure:5~7barTransverse stroke:160mm.
    Action model option:Automatic/semi-automaticVertical stroke:75mm.
    Start-up method:Panel/foot switchesCentre distance of ink tray:127mm.
    Dimension:1250*980*1400 (mm)Printing workstation:16pcs.
    Net Weight:140KGRepeat precision:< 0.05mm.
    Steel plate size:100*150mmFixing clamp method:T-slot.

    Max printing

    speed:

    1500times/hrMaterial of clamp:

    Automobile Putty/

    Aluminum/plastic/steel.

    Max printing area:70*120mmPlastic fastness style:

    Wooden bolt.


    50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer50W Transfer Belt Pad Printer Machine Semi Auto 4 Color Pad Printer
