220V 50Hz Tampo Pad Printer Machine 8 Printing Colors For Shoes

Ask Lasest Price
Brand Name :	HONGYU
Model Number :	P8S
Certification :	CE
Price :	negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	30 set
Delivery Time :	15 work day

Add to Cart

Product Details
Company Profile

220V 50Hz Tampo Pad Printer Machine 8 Printing Colors For Shoes

Shoes Pad Printer Tampo Printing Machine

It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on, and suitable for small printing area of plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts etc.

Model:P8S	Max printing speed: 1000P/H
Printing Colors: 8	Printing Wattage: 220V/ 50Hz 110V/60Hz
Plate area: 100*100mm	Air pressure: 0.4-0.6Mpa
Max Printing area: 70*120 mm	Machine size: 1300x1200x1500mm

220V 50Hz Tampo Pad Printer Machine 8 Printing Colors For Shoes

Product Paramenters

Machine features:

1.With microcomputer-controller, semi-automatic, utility function,
and the operating procedures are flexible and reliable.

2. The hardened axle can bearing made by famous processor and the
SMC Pneumatic Components from Japan are adopted to reduce the
repair and maintenance, so that the unit is not worn easily and
service life of machine parts are extended largely.

3. It has separated colloid head and is convenient for adjusting
the speed of movement back and forth, and is applicable to
different printing needs.

4. Base for each inking pan can be adjusted independently at X and
Y angle, with accurate chromatograph and improved production
efficiency.

5. The body of the unit adopts the die-cast rack of aluminum alloy
and is both portable and solid.

6. The safely rubber sheet and emergency cut of system of power
supply are provided so as to make unit comply with the
international industrial safety standards.

7. With multilevel-controlled, and is satisfied with different
requirement of the printing speed.

8. The rolls to inking, easy to install and uninstall, and
convenient for cleaning.

9. It is set 4-digit number auto-counter, and is convenient for
recording the quantity of the printing products.

10. With self-poise oil scraper, can adjusting the thickness of
steel independently, scrape oil efficiently.

11. The colloid head is not leave moulage when blank line printing,
it is prevent from the printing ink to dry when we pause the
machine.

12. It is setting the standard procedure and off-standard program,
breakthrough the function of ordinary machine, unlimited program to
procure ink and printing.

Details Images

220V 50Hz Tampo Pad Printer Machine 8 Printing Colors For Shoes

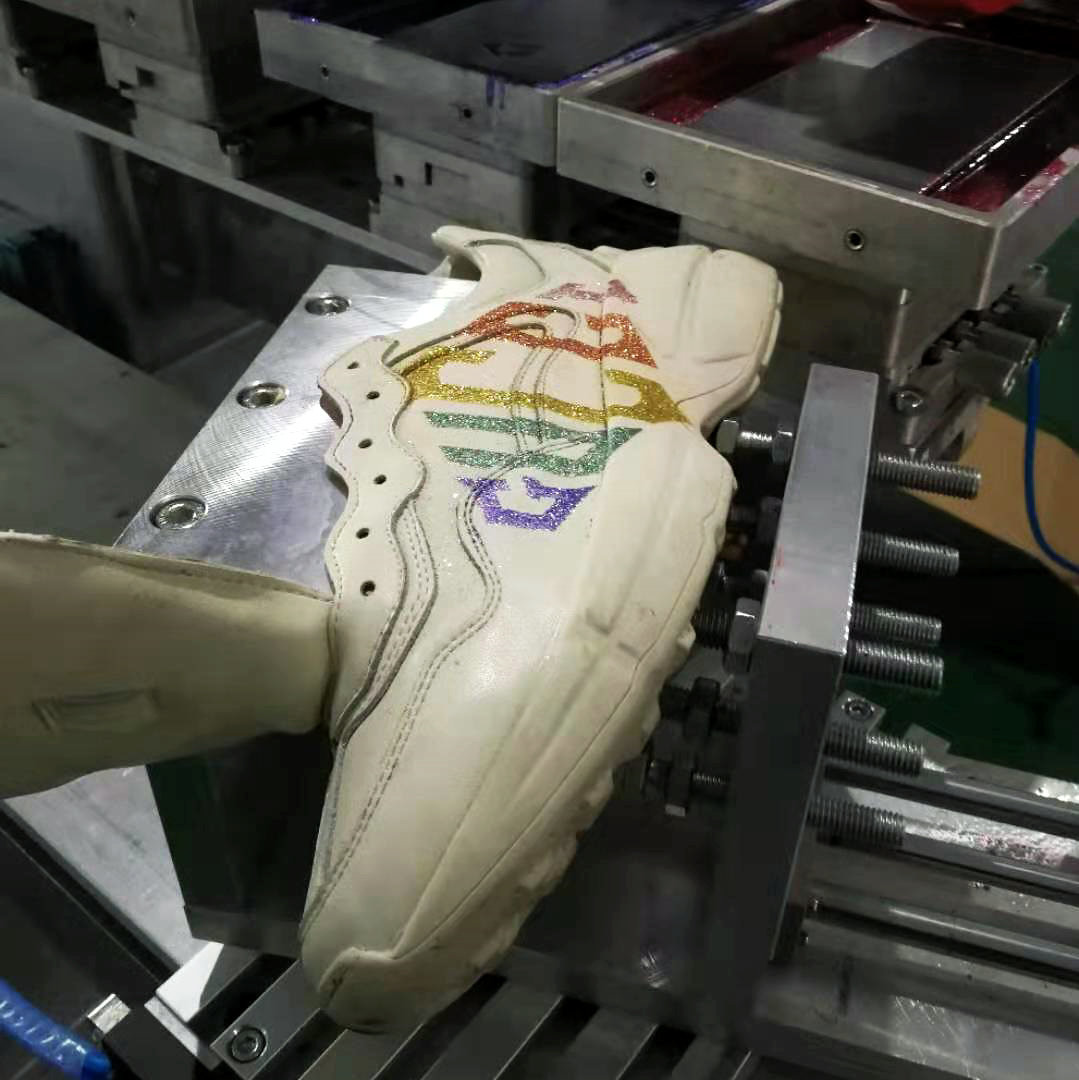

Printed samples

220V 50Hz Tampo Pad Printer Machine 8 Printing Colors For Shoes
