    Servo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing Machine

    Ask Lasest Price
    Brand Name : HONGYU
    Model Number : HY-320H
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 60SET/MOUNTH
    Delivery Time : 5 work day
    • Product Details
    • Company Profile

    Servo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing Machine

    PP/PE Plastic Paint Bucket Heat Transfer Printing Machine for 20 Litres 5 Gallon oil Pail container


    HY320H Full Servo Drive Heat Transfer Machine for Plastic Bucket
    This servo system controlled heat transfer press machine is specially made for 5 gallon 20 litre bucket. Its high efficiency and stable performance are good for mass production. Products to print: plastic bucket, pail, 5 gallon bucket, diaper pail, plastic pail, paint bucket, 3 liter water bottle, 20L bucket, 20 litre plastic containers etc.
    Specification
    1. PLC control system, it is easy to set data and operate, machine can calculate running trail automatically by inputting 3 parameters, which are perimeter of top and bottom, bucket and height of bucket. 2.With air pressure sensor to make which more balanced. 3.Heat transfer pressure, temperature, speed and time are adjustable. 4.Adjustable with different angle and front-back position on bottom of mould. 5.Tension control system makes heat transfer film smooth but not folded. 6.High precise sensor combines with double times speed to collect film. 7.Pattern of heat transfer is stable and precise, especially suitable for bar code and OR code. 8.XYZ triaxial servo matches the taper and work track which enable photo to be heat transferred in a high accurate position.

    Max. size of product:H280*Φ320mmSpeed of transfer:300-720pcs/h
    Timing of transfer:4seconds/pcAir consumption:0.6-0.8mpa
    Power supply:220v 50hz 3.8kw 35ADimension:1600*1200*1900mm

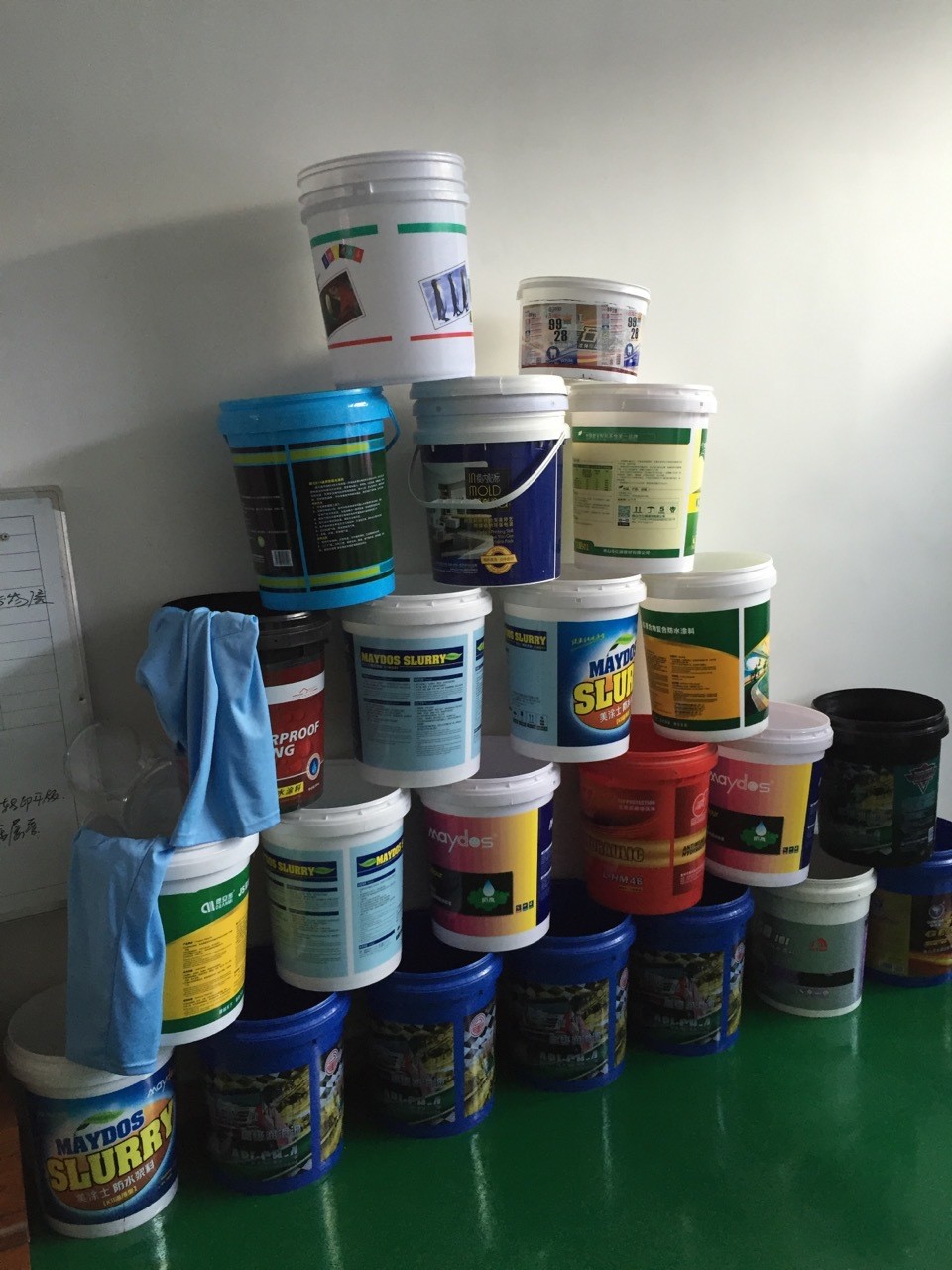

    Printed samples

    Servo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing MachineServo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing MachineServo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing MachineServo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing MachineServo Controlled Heat Transfer Printer Machine 720pcs/h Paint Bucket Printing Machine
